Introduction :

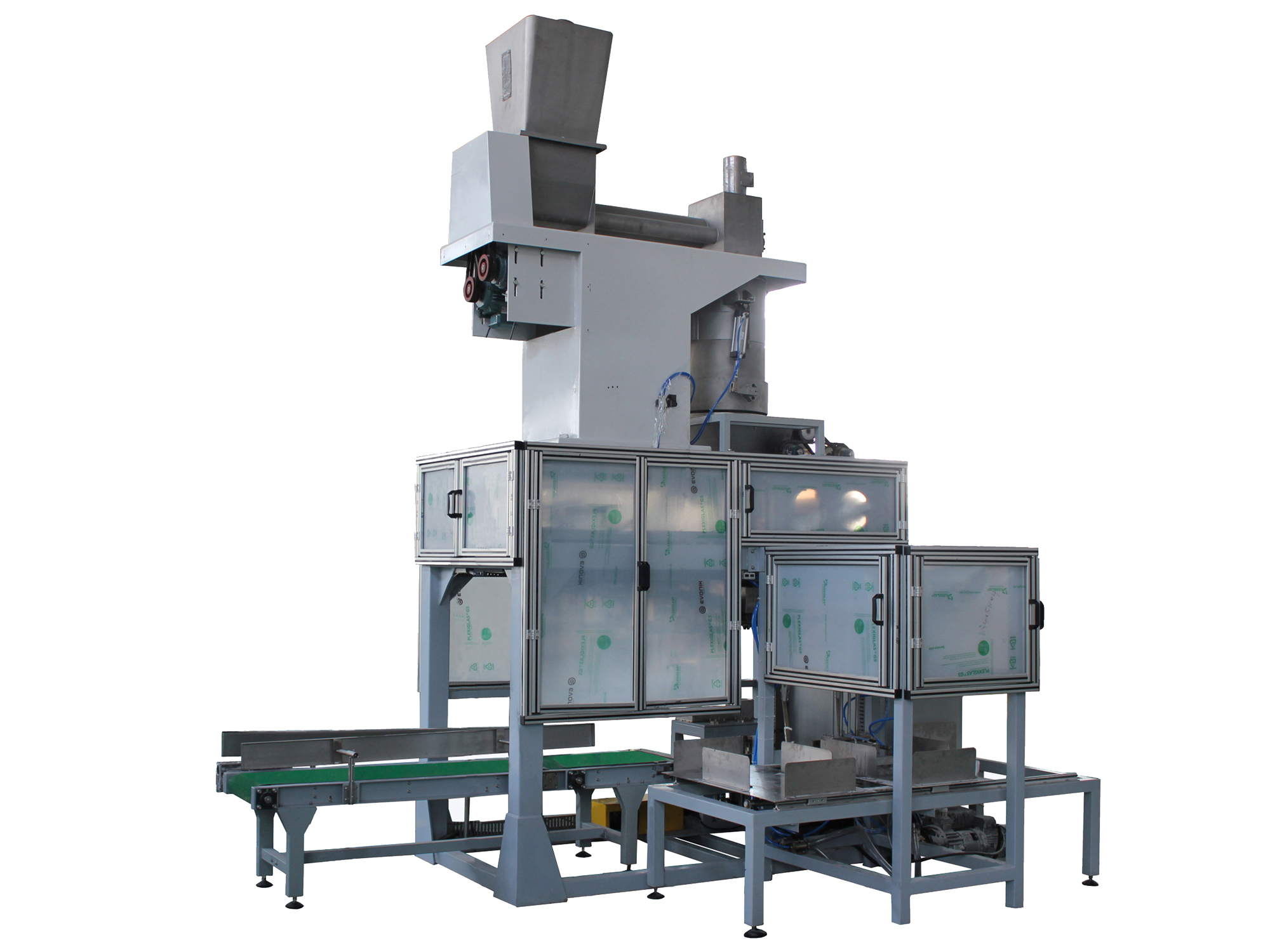

This packaging machine is developed for powdery material packing in allusion to Agriculture,chemical and foodindustry etc. . The unit is provided with the functions of automaticbag-fetching,automatic filling ,automatic bag-conveying nad sealing. Can be linked with all kinds of powder materials production equipment to work to achieve unattended production of large-sized packaging operations. LCD touch screen control (up to IP65 above grade waterproofing, dustproof, can be adapted to humid, dusty work environment), human-computer interface more favorable, automatic fault diagnosis, safety shutdown protection, quick adjustment and easy maintenance.
Technical parameters:
Package Dimensions (Unit: mm): （800-1000）×（450-550） L × W
Package weight: 25 kg / bag
Measurement accuracy: ±0.5%
Speed: 4～5 packs / minute (depending on packaging materials, bags and other dimensions may vary slightly)
Air supply: about 0.5 ~ 0.7Mpa
Power: about 12KW 380 ± 10% 50HZ
Dimensions (unit: mm): 4200 × 2200 × 2100 (L × W × H)
Sealing way : 1.Woven Bag: lura folding/ seaming
2 kraft paper bags: sealing / seaming
3 composite film bag: sealing
Weight: 1400KG
Packaging materials: non-sticky powder materials
